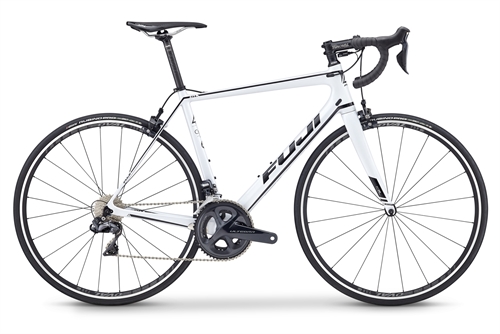

Fuji SL 2.1 2019

SL

---

The SL was born out of the quest to create one of the lightest bikes in the world, a machine weight weenies dream of. When every gram matters, ingenuity follows: Through High Compaction molding and the reduction of bonded joints, the SL delivers a frame weight of only 695g without compromising on frame stiffness. For those wanting more control when coming down the mountain we offer the SL in a disc brake version. Whether rim brakes or disc brakes, the SL is in an elite class of superlight bicycles and is elevating Fuji road bikes to a higher level.


Model year:	2019
Size:	49cm, 52cm, 54cm, 56cm, 58cm
Color:	White
Brand:	FUJI
Name:	SL
Model number:	2.1
Weight:	7.54 kg / 16.62 lbs
Main frame:	C10 high-modulus carbon, integrated head tube w/ 1 1/2'' lower, PF30 BB, double water bottle mounts, oversized chainstays, carbon dropout w/ replaceable hanger
Fork:	FC-440 full carbon w/ tapered carbon steerer
Front Derailleur:	Shimano Ultegra Di2, braze-on mount
Rear Derailleur:	Shimano Ultegra Di2
Brake levers:	Shimano Ultegra Di2
Brakeset:	Shimano Ultegra
Handlebar:	Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4 degree sweep
Crankset:	Shimano Ultegra, 52/36T
Seat post:	Oval Concepts 905, carbon & alloy, 27.2mm diameter
Headset:	FSA, 1 1/8" upper - 1 1/2" lower, integrated
Shifters:	Shimano Ultegra Di2 Dual Control, 11-speed
Cassette:	Shimano Ultegra, 11-30T
Stem:	Oval Concepts 313, 3D-forged 6061 stem body, +/-7 degree
Chain:	KMC X11 w/ MissingLink
Wheelset:	Oval Concepts 723, 700c 20/24H super-light aluminum rims
Saddle:	Oval Concepts X38 with pressure relief zone, cromo rail
Bottom bracket:	Praxis PF30 conversion bottom bracket
Tires:	Vittoria Rubino Pro, 700 x 25c, 150tpi, folding
Type:	Bike
Detail Color:	Pearl White
Material:	Carbon
Gender:	Herren



	Description	Size 1	Size 2	Size 3	Size 4	Size 5	Size 6	Size 7
	Size	XXS	XS	S	M	L	XL	XXL
	Bike Size	46cm	49cm	52cm	54cm	56cm	58cm	61cm
A	Seat Tube Center To Top	420	450	480	500	520	540	570
B	Seat Tube Effective	460	490	520	540	560	580	610
C	Top Tube Effective	505	515	530	545	560	580	600
D	Head Tube Length	100	110	130	150	170	190	210
E	Seat Tube Angle	75°	74.5°	73.75°	73.5°	73°	73°	73°
G	Headtube Angle	71	71.5	71.5	73	73	73	73
H	Chainstay Length	405	405	405	405	405	405	405
I	Wheelbase	974	975	979	974	983	1003	1023
J	Bottom Bracket Drop	68	68	68	68	68	68	68
K	Fork Offset	52	52	52	43	43	43	43
L	Trail	60.7	57.6	57.6	57.8	57.8	57.8	57.8
M	Stack	497	509	529	555	574	593	612
N	Reach	372	374	376	381	385	399	413
O	Standover	707	718	743	762	782	801	825
	Stem	80	90	90	100	100	120	120
	Handlebar Width	380	400	400	420	420	440	440
	Crank	165	170	170	172.5	172.5	175	175
	Wheel Size	700	700	700	700	700	700	700
	Seat Post Diameter	27.2	27.2	27.2	27.2	27.2	27.2	27.2

**Geometry is subject to change without notice.**
